Documents:
|
|
|
INFORMATION DETAILS
ID: 13355126
|
Year: 2015
|

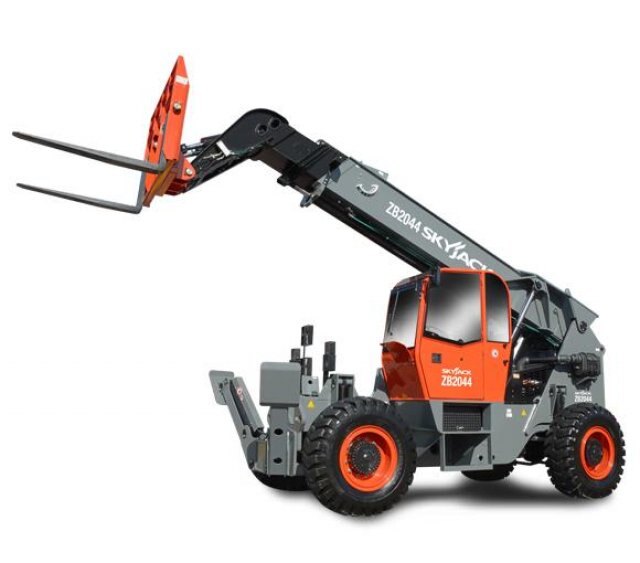

Make: Skyjack
|
Model: ZB2044
|
Type: New
|
| MSRP:
N/A |
Engine Size - cc: N/A |
| Overall Width: | 8' 6'' (2.59 m) |
| Wheelbase: | 11' 6'' (3.51 m) |
| Maximum Lift Height: | 44' 10'' (13.67 m) |
| Overall Height - Stowed: | 9' (2.74 m) |
| O/A Length - LessForks: | 20' 3'' (6.7m) |
| Max Travel Speed - Forward: | 20.5 mph (33 kph) |
| Tires: | 17.5 x 25 16PR grip lug |
| Steering: | 3 mode (2 wheel, 4 wheel, crab) |
| HP @ rpm: | 168hp @ 2300 rpm |
| Axles: | Axletech steerable outboard planetary |
| Operating Weight: | 45,000 lbs (20,412 kg) |
| Engine: | Cummins Tier 4i QSB 4.5C Turbocharged Diesel |
SELLER DESCRIPTION
|
|
|
STANDARD FEATURES
|
-
Outriggers
-
Rear axle “Stable-Lock” cylinder with backup accumulator
-
Standard quick attach carriage mount system
-
Auxiliary hydraulic group for boom attachments
-
Dual lift cylinders
-
High pivot boom mount design
-
ROPS/FOPS certified cab
-
Rear window and side screen
-
Lockable under cab storage compartment / step
-
Adjustable suspension seat with seat belt
-
Dual joystick pilot operated controls for boom and frame level functions
-
Tilt adjustable joystick console
-
Gauge instrumentation
-
Electronic powerview engine monitor/gauge
-
Lockable steel swing up engine doors
-
Engine grid heater
-
Dual element air cleaner with flow restriction indicator
-
Dual batteries
-
Independent front/rear brake systems
-
Dual brake accumulators for dead engine braking
-
Brake activated transmission disconnect
-
55 gallon (208 L) steel hydraulic tank
-
49 gallon (185 L) steel fuel tank
-
Horn and backup alarm
-
Mirrors, right and left side
-
Remote grease fittings for axle trunnion mount lubrication
-
Easy to remove steel component and access covers
-
Operator/maintenance and parts manuals
-
12 months/2000 hour warranty (4 years on structure)
|
