INFORMATION DETAILS
ID: 13355117
|
Year: 2015
|

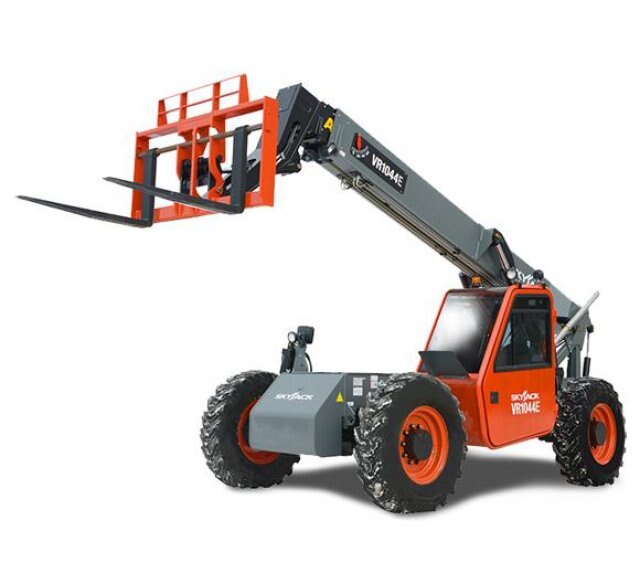

Make: Skyjack
|
Model: VR1044E
|
Type: New
|
| MSRP:
N/A |
Engine Size - cc: N/A |
| Overall Width: | 8' 6'' (2.59 m) |
| Maximum Lift Capacity: | 10,000 lbs (4,540 kg) |
| Maximum Lift Height: | 44' 5'' (13.54 m) |
| Overall Height - Stowed: | 8' 1'' (2.47 m) |
| O/A Length - LessForks: | 21' (6.44 m) |
| Max Travel Speed - Forward: | 17.9 mph (28.8 kmh) |
| Tires: | 14 x 24 16PR grip lug |
| Steering: | 3 mode (2 wheel, 4 wheel, crab) |
| HP @ rpm: | 110hp @ 2400 rpm |
| Axles: | Dana steerable outboard planetary |
| Operating Weight: | 27,645 lbs (12,566 kg) |
| Engine: | Cummins Tier 4i QSB3.3 Turbocharged Diesel |
SELLER DESCRIPTION
|
|
|
STANDARD FEATURES
|
-
EZ-Lock rear axle stabilization system
-
Standard quick attach carriage mount system
-
Single function auxiliary hydraulics
-
Dual lift cylinders with cushioning effect
-
See through open “A” frame high pivot boom mount design
-
ROPS/FOPS certified cab with see through FOPS guard
-
Rear window w/wiper
-
Side window
-
Adjustable vinyl seat with seat belt
-
Ergonomic joystick console with armrest and cup holder
-
Single multifunction pilot operated joystick control
-
Instrumentation: hourmeter and fuel gauge, indicator lights for transmission oil temperature, battery condition, engine coolant pressure and engine oil pressure
-
Park brake test button
-
12V DC electrical system with 12V power outlet in cab
-
Lockable in cab storage box
-
Mid-mount in line engine design
-
Lockable sliding engine cover allows access with boom fully stowed
-
Engine grid heater
-
Dual element air cleaner with flow restriction indicator
-
40 gallon (151 L) steel hydraulic tank with lockable cap
-
35 gallon (133 L) steel fuel tank with lockable cap
-
Horn and backup alarm
-
Mirrors, right and left side
-
Remote grease fittings for axle trunnion mount lubrication
-
Easy to remove steel component and access covers
-
Operator/Maintenance and Parts manuals
-
12 months/2000 hour warranty (4 years on structure)
-
Telematics ready
|
